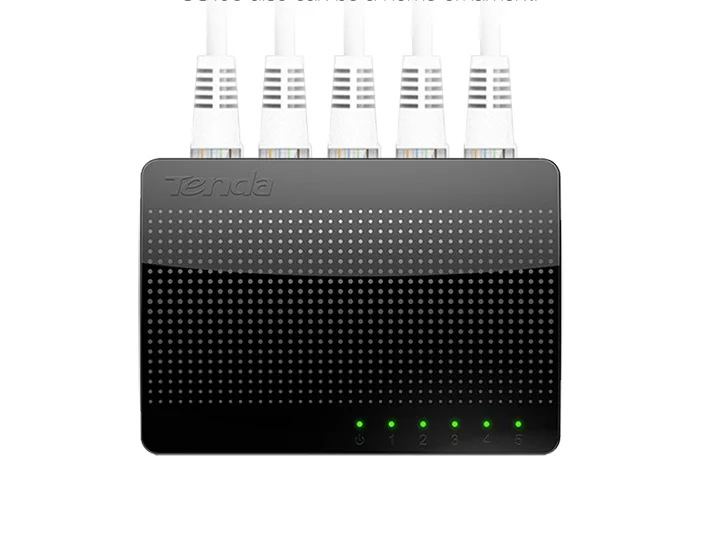

Tenda SG105 Mini 5-Port Desktop Gigabit Switch / Fast Ethernet Network Switch LAN Hub/ Full or Half duplex Exchange

Availability:

In stock

$20.90 Wishlist Compare

Main Features

• 5 * 10/100 / 1000Mbps auto-negotiation ports
• Auto MDI / MDIX simplifies networking and maintenance
• Full wire speed forwarding ensures a smooth network experience
• Flow control for full duplex and backpressure for half duplex avoids frame dropping as port blocked

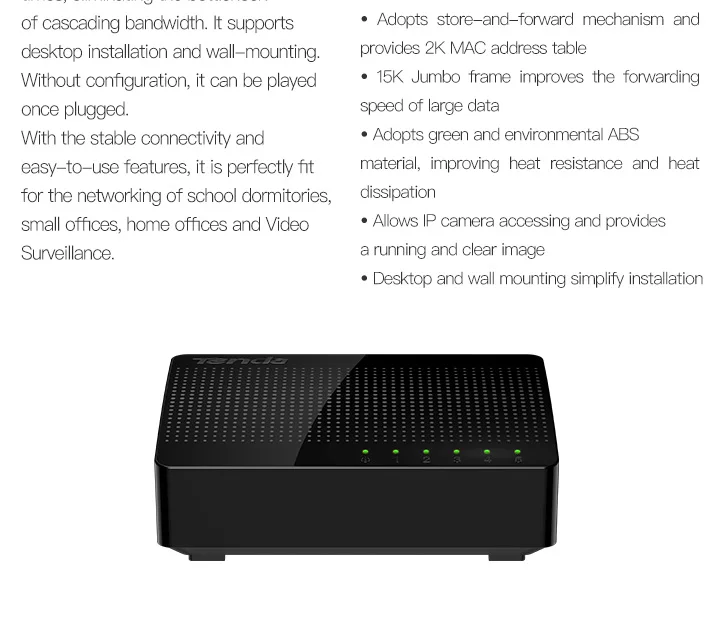

• Adopts store-and-forward mechanism and provides 2K MAC address table
• 15K Jumbo frame improves the forwarding speed of large data
• Adopts green and environmental ABS material, improving heat resistance and heat dissipation
• Allows IP camera accessing and provides a running and clear image

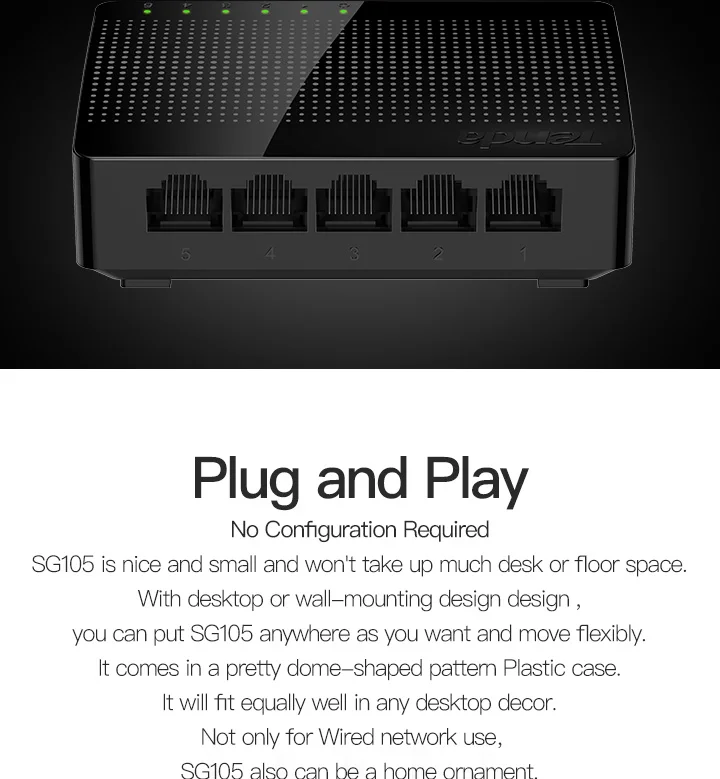

• Desktop and wall mounting simplify installation
SG105_01 SG105_02 SG105_03 SG105_04 SG105_05 SG105_06 SG105_07 SG105_08 SG105_09 SG105_10 SG105_11 SG105_12 SG105_13 SG105_14


LZCX_07 LZCX_08 LZCX_09


Product specification



  • Transfer rate: 10/100/1000M
  • Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
  • Fixed ports: 5 * 10/100 / 1000Mbps auto-negotiation RJ45 Ethernet ports, supports auto-flip
  • Transmission media: 10BASE-T: 3 class lines or better; 100BASE-TX / 1000BASE-T: 5 kinds of lines, super-Category 5 or better
  • LED: 5 * 10/100 / 1000Mbps Link / Act Connection / status lights; 1 * power supply lamp
  • Power Input: 100-240V ~ 50 / 60Hz
  • Power Output: 5V / 0.6A
  • Forwarding Rate 10Mbps: 14880pps; 100Mbps: 148800pps; 1000Mbps: 1488000pps
  • Switching features: Store and forward mode; MAC address self-learning and updating; 10Gbps backplane bandwidth
  • Temperature Operating: 0C ~ 45C
  • Storage Temperature: -40C ~ 70C
  • Humidity Operating: 10% to 90% non-condensing
  • Storage humidity: 5% to 90% non-condensing
  • Packing Accessories: 1 * Quick Installation Guide (including warranty card); 1 * 5 Gigabit Desktop Switch; 1 * Power Adapter
  • System Requirements: Supports IEEE802.3 / u / x / ab network devices; network adapter; Windows 10, Windows 8, Windows7, windows XP, Linux, MAC O
